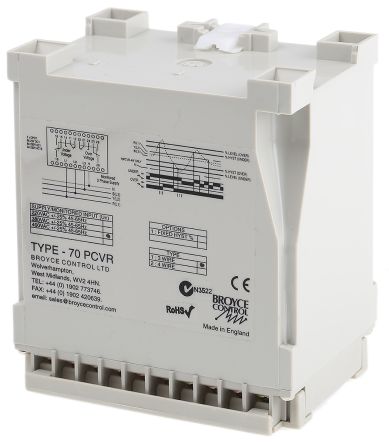

Broyce Control Phase, Voltage Monitoring Relay With 4NO/4NC Contacts, 3 Phase, 400 V ac [70PCVR 400VAC]; 397-9173
0₫
Mã kho: 3979173
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 400 V ac |
| Contact Configuration | 4NO/4NC |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 400 V ac |
| Phase Sensitivity | Phase Loss |
| Time Delay | 200 ms |
| Width | 100mm |
| Maximum Voltage Sensed | 400V ac |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Height | 70mm |
| Dimensions | 114 x 100 x 70 mm |
| Length | 114mm |
| Minimum Operating Temperature | -20°C |
