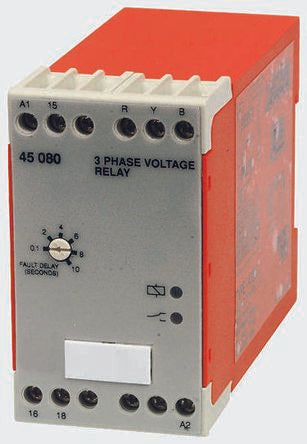

Broyce Control Phase, Voltage Monitoring Relay With SPDT Contacts, 3 Phase, 230 V ac, 400 V ac [45080 230/400VAC]; 298-9365
0₫
Mã kho: 2989365
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 230 V ac, 400 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Undervoltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 400 V ac |
| Phase Sensitivity | Phase Loss, Phase Sequence |
| Time Delay | 0.1 → 10 s |
| Maximum Voltage Sensed | 400V ac |
| Operating Temperature Range | -20 → +60 °C |
| Width | 45mm |
| Height | 78mm |
| Length | 99mm |
| Minimum Operating Temperature | -20°C |
| Dimensions | 99 x 45 x 78 mm |
| Maximum Operating Temperature | +60°C |
