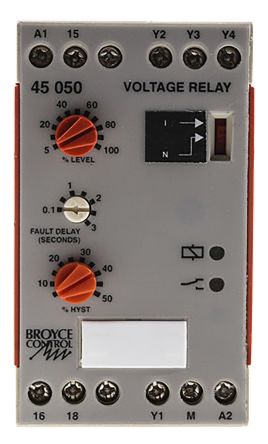

Broyce Control Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 110 V ac [45050 110VAC]; 321-6781
0₫
Mã kho: 3216781
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 110 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | 0.5 → 10 V ac/dc, 3 → 60 V ac/dc, 30 → 600 V ac/dc |
| Time Delay | 0.1 → 3 s |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Dimensions | 99 x 45 x 78 mm |
| Minimum Voltage Sensed | 0.5 V ac/dc |
| Height | 78mm |
| Maximum Voltage Sensed | 600V ac/dc |
| Operating Temperature Range | -20 → +60 °C |
| Width | 45mm |
| Length | 99mm |
