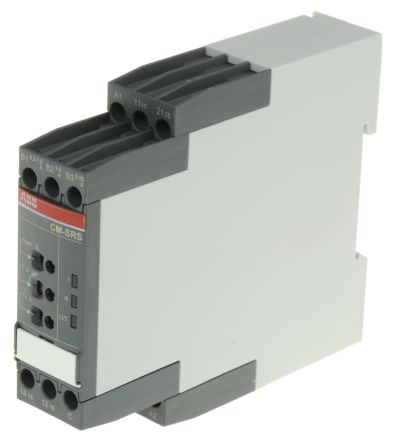

ABB Current Monitoring Relay With DPDT Contacts, 1 Phase, 24 → 240 V ac/dc [1SVR730840R0500]; 775-7983
by ABB
0₫
Mã kho: 7757983
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | DPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0.3 A, 1 A, 3 A |
| Maximum Current Sensed | 1.5 A, 5 A, 15 A |
| Time Delay | 0 s, 0.1 → 30 s |
| Frequency Sensing Range | 50 → 60 Hz |
| Minimum Operating Temperature | -20°C |
| Current Range | 0.3 → 1.5 A, 1 → 5 A, 3 → 15 A |
| Length | 103.7mm |
| Dimensions | 103.7 x 22.5 x 85.6 mm |
| Width | 22.5mm |
| Maximum Operating Temperature | +60°C |
| Height | 85.6mm |
| Operating Temperature Range | -20 → +60 °C |
