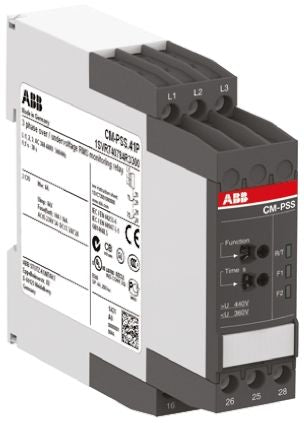

ABB Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 380 V ac [1SVR730784R2300]; 775-7889
by ABB
0₫
Mã kho: 7757889
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 380 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 3 |
| Voltage Sensing Range | 342 → 418 V ac |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0 s, 0.1 → 30 s |
| Frequency Sensing Range | 45 → 65 Hz |
| Height | 85.6mm |
| Maximum Operating Temperature | +60°C |
| Length | 103.7mm |
| Width | 22.5mm |
| Minimum Voltage Sensed | 342 V ac |
| Minimum Operating Temperature | -25°C |
| Maximum Voltage Sensed | 418V ac |
| Operating Temperature Range | -25 → +60 °C |
| Dimensions | 103.7 x 22.5 x 85.6 mm |
