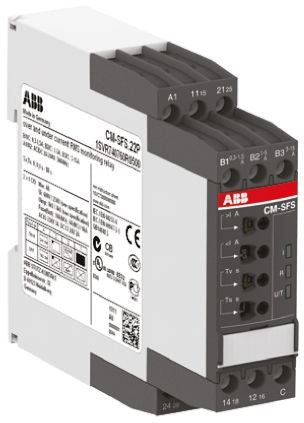

ABB Current Monitoring Relay With DPDT Contacts, 1 Phase, 24 → 240 V ac/dc [1SVR730760R0400]; 775-7949
by ABB
0₫
Mã kho: 7757949
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | DPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0.1 A, 3 mA, 10 mA |
| Maximum Current Sensed | 1 A, 30 mA, 100 mA |
| Time Delay | 0 s, 0.1 → 30 s |
| Height | 85.6mm |
| Operating Temperature Range | -20 → +60 °C |
| Width | 22.5mm |
| Dimensions | 103.7 x 22.5 x 85.6 mm |
| Current Range | 0.1 → 1 A, 3 → 30 mA, 10 → 100 mA |
| Minimum Operating Temperature | -20°C |
| Length | 103.7mm |
| Maximum Operating Temperature | +60°C |
