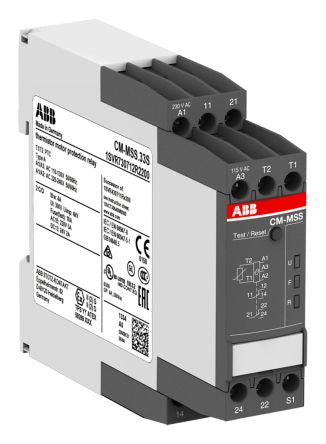

ABB Temperature Monitoring Relay With DPDT Contacts, 1 Phase, 110 → 130 V ac, 220 → 240 V ac [1SVR730712R2200]; 876-5033
by ABB
0₫
Mã kho: 8765033
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Temperature |
| Supply Voltage | 110 → 130 V ac, 220 → 240 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 1 |
| Time Delay | <100 ms |
| Temperature Sensitivity | Overtemperature, Winding Temperature |
| Standards Met | ATEX, CB Scheme, CCC, CE, CULus, EAC, EMC, GL, IEC/EN 60255-1, IEC/EN 60947-8, RCM, RoHS |
| Series | CM-MSS |
| Length | 103.7mm |
| Width | 22.5mm |
| Operating Temperature Range | -25 → +60 °C |
| Terminal Type | Screw |
| Dimensions | 103.7 x 22.5 x 85.6 mm |
| Number of Poles | 1 |
| Mounting Type | DIN Rail, Snap-In |
| Minimum Operating Temperature | -25°C |
| Current Range | Maximum of 3.7 mA |
| Height | 85.6mm |
| Maximum Operating Temperature | +60°C |
| Special Features | Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit, Test and Reset Button |
