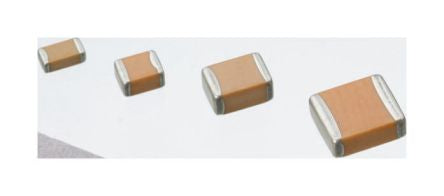

Nippon Chemi-Con 1812 (4532M) 4.7μF MLCC 50V dc ±20% SMD KTS500B475M43N0T00 [KTS500B475M43N0T00]; 501-9908
0₫
Mã kho: 5019908
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 µF |
| Voltage | 50 V dc |
| Package/Case | 1812 (4532M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±20% |
| Dimensions | 4.5 x 3.2 x 2.8mm |
| Length | 4.5mm |
| Depth | 3.2mm |
| Height | 2.8mm |
| Terminal Type | Surface Mount |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
