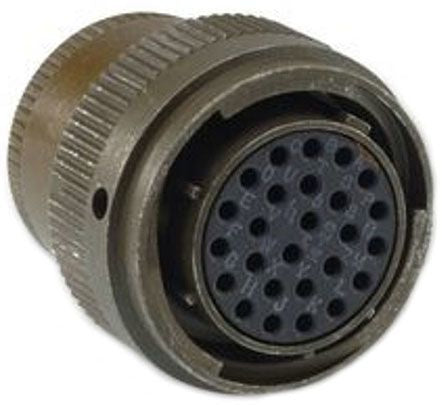

ITT Cannon KPT Series, 32 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 18 [KPT06F18-32S]; 466-703
by ITT Cannon
0₫
Mã kho: 466703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 32 |
| Gender | Male |
| Contact Gender | Female |
| Current Rating | 7.5A |
| Voltage Rating | 600 V ac, 850 V dc |
| Shell Size | 18 |
| Mounting Type | Cable Mount |
| Termination Method | Solder |
| Mating Type | Bayonet Coupling |
| Body Orientation | Straight |
| Series | KPT |
| Contact Plating | Gold |
| Minimum Operating Temperature | -55°C |
| Shell Plating | Olive Drab Cadmium |
| Maximum Operating Temperature | +125°C |
| Strain Relief | Yes |
| Contact Material | Copper Alloy |
