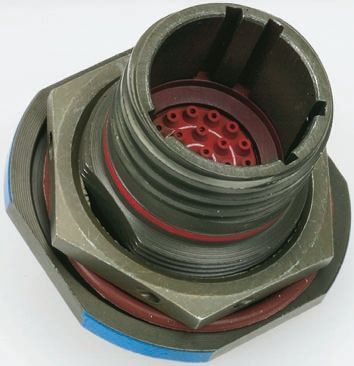

Amphenol Socapex 22 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 13 [TV07RW1335S]; 716-0143
by Amphenol
0₫
Mã kho: 7160143
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 22 |
| Gender | Female |
| Contact Gender | Female |
| Voltage Rating | 400 V ac, 550 V dc |
| Shell Size | 13 |
| Mounting Type | Panel Mount |
| Military Standard | MIL-DTL-38999 |
| Termination Method | Crimp |
| Mating Type | Screw Coupling |
| Body Orientation | Straight |
| Maximum Operating Temperature | +175°C |
| Minimum Operating Temperature | -65°C |
| Shell Plating | Olive Drab Cadmium |
| Contact Plating | Gold |
