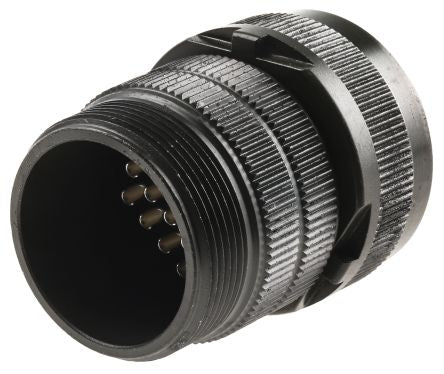

Amphenol Socapex MS3106A Series, 24 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 24 [MS3106A-24-28S]; 475-909
by Amphenol
0₫
Mã kho: 475909
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 24 |
| Gender | Male |
| Contact Gender | Female |
| Voltage Rating | 200 V ac, 250 V dc |
| Shell Size | 24 |
| Mounting Type | Cable Mount |
| Military Standard | MIL-DTL-5015 |
| Termination Method | Solder |
| Mating Type | Screw Coupling |
| Body Orientation | Straight |
| Series | MS3106A |
| Contact Plating | Silver |
| Minimum Operating Temperature | -55°C |
| Shell Plating | Zinc Cobalt |
| Maximum Operating Temperature | +125°C |
| Contact Material | Copper Alloy |
