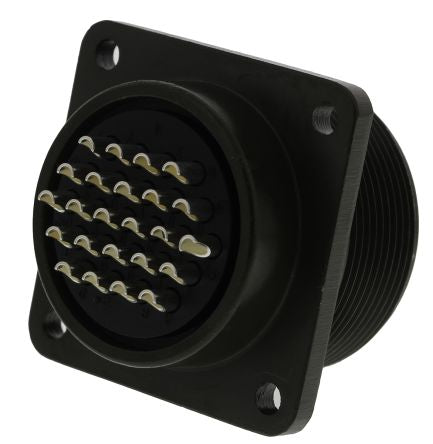

Amphenol Socapex MS3102A Series, 24 Way Box Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 24 [MS3102A-24-28S]; 475-785
by Amphenol
0₫
Mã kho: 475785
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 24 |
| Gender | Female |
| Contact Gender | Female |
| Voltage Rating | 200 V ac, 250 V dc |
| Shell Size | 24 |
| Mounting Type | Box Mount |
| Military Standard | MIL-DTL-5015 |
| Termination Method | Solder |
| Mating Type | Screw Coupling |
| Body Orientation | Straight |
| Series | MS3102A |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Silver |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -55°C |
| Shell Plating | Zinc Cobalt |
