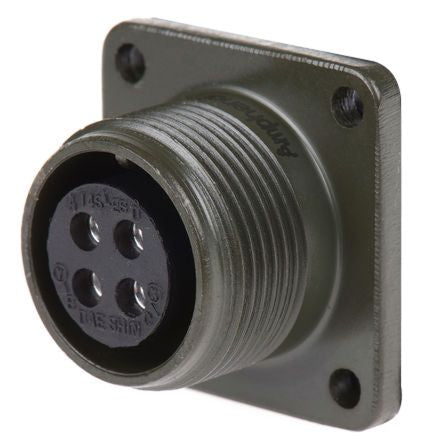

Amphenol Socapex MS3102A Series, 4 Way Box Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 14S [MS3102A-14S-2S]; 298-2566
by Amphenol
0₫
Mã kho: 2982566
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 4 |
| Gender | Female |
| Contact Gender | Female |
| Voltage Rating | 200 V ac, 250 V dc |
| Shell Size | 14S |
| Mounting Type | Box Mount |
| Military Standard | MIL-DTL-5015 |
| Termination Method | Solder |
| Mating Type | Screw Coupling |
| Body Orientation | Straight |
| Series | MS3102A |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Shell Plating | Zinc Cobalt |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
