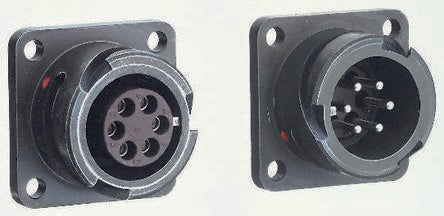

Amphenol Socapex 97B Series, 7 Way Wall Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 24 [97B-3100A24-2S]; 442-2713
by Amphenol
0₫
Mã kho: 4422713
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 7 |
| Gender | Female |
| Contact Gender | Female |
| Current Rating | 23A |
| Voltage Rating | 900 V ac |
| Shell Size | 24 |
| Mounting Type | Wall Mount |
| Military Standard | MIL-DTL-5015 |
| Termination Method | Solder |
| Mating Type | Bayonet Coupling |
| Body Orientation | Straight |
| Series | 97B |
| Contact Plating | Silver |
| Shell Plating | Olive Drab Cadmium |
| Contact Material | Brass |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
