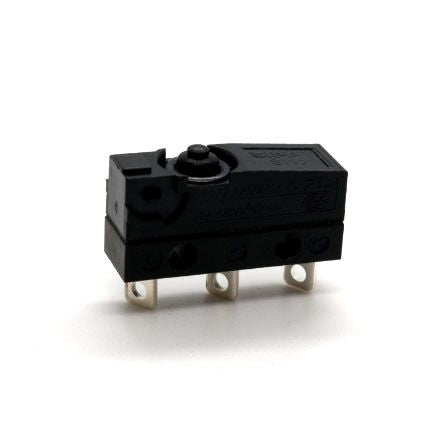

SPDT-NO/NC Microswicth 6A 250V Solder [SW2-06S1-00A0-Z]; 185-4049
by Zippy
0₫
Mã kho: 1854049
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Snap |
| Terminal Type | Solder |
| Contact Current Rating | 0.25 |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| IP Rating | IP67 |
| Operating Force | 203 gf |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Contact Material | Ag Alloy, Brass |
| Case Material | Polyamide |
| Release Force | 50gf |
| Voltage Rating | 125 V ac, 250 V ac |
| Operating Temperature Range | -40 → +125°C |
