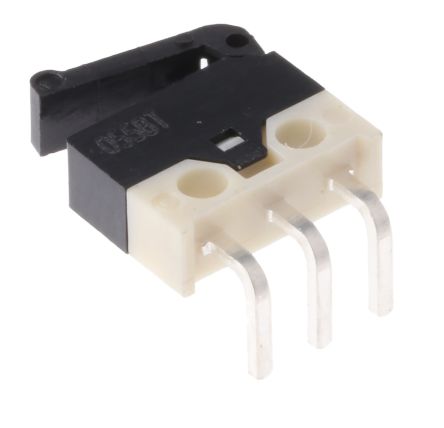

SPDT-NO/NC Lever Subminiature Micro Switch, 500 mA @ 30 V dc [DH2C-C6PA]; 706-4171
by ZF
0₫
Mã kho: 7064171
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Terminal Type | Left Angle PCB |
| Contact Current Rating | 500 mA @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| Operating Force | 0.49 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Gold Plated Brass |
| Operating Temperature Range | -25 → +70°C |
