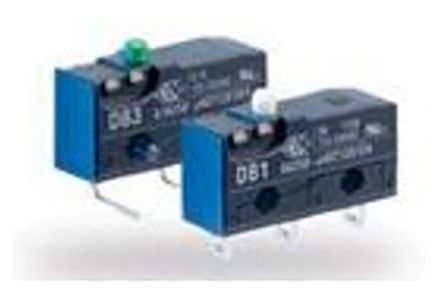

SPDT Straight Lever Microswitch, 10.1 A [DB2C-A1MC]; 868-1966
by ZF
0₫
Mã kho: 8681966
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Straight Lever |
| Terminal Type | Solder |
| Contact Current Rating | 10.1 A |
| Contact Configuration | SPDT |
| IP Rating | IP50 |
| Operating Force | 35 g |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
| Contact Material | Copper Zinc Alloy |
| Case Material | PET |
| Voltage Rating | 125/250V ac |
| Operating Temperature Range | -40 → +120°C |
| Standards Met | EN61058, UL E314201, UL1054 |
