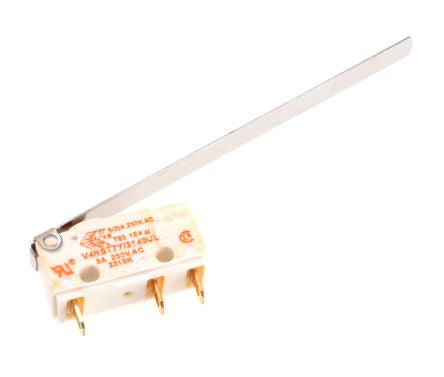

SP-NO/NC Long Hinge Lever Microswitch, 5 A @ 250 V ac [V4NST7Y/3140UL]; 173-9380
by Saia-Burgess
0₫
Mã kho: 1739380
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Long Hinge Lever |
Terminal Type | Solder |
Contact Current Rating | 5 A @ 250 V ac |
Contact Configuration | SP-NO/NC |
IP Rating | IP67 |
Operating Force | 0.9 N |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Contact Material | Fine Silver |
Case Material | Glass Fibre Reinforced Nylon |
Mechanical Life | 3 x 10^6Operations |
Release Force | 0.07N |
Operating Temperature Range | -40 → +85°C |
