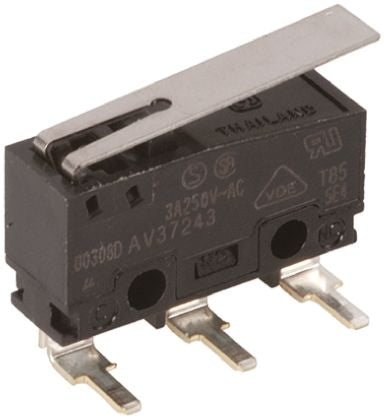

SPDT Hinge Lever Microswitch, 5 A @ 250 V ac [AVM37253]; 173-8461
by Panasonic
0₫
Mã kho: 1738461
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Hinge Lever |
| Terminal Type | Left Angle PCB |
| Contact Current Rating | 5 A @ 250 V ac |
| Contact Configuration | SPDT |
| Operating Force | 0.54 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Nickel Alloy |
| Mechanical Life | 10^7Operations |
| Release Force | 0.034N |
| Operating Temperature Range | -25 → +85°C |
