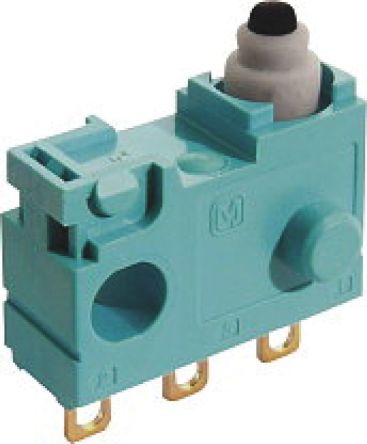

SPDT-NO/NC Pin Plunger Microswitch, 100 mA @ 30 V dc [ASQ14410]; 699-0176
by Panasonic
0₫
Mã kho: 6990176
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Pin Plunger |
Terminal Type | Solder |
Contact Current Rating | 100 mA @ 30 V dc |
Contact Configuration | SPDT-NO/NC |
IP Rating | IP67 |
Operating Force | 1.5 N |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Contact Material | Gold Plated |
Operating Temperature Range | -40 → +85°C |
