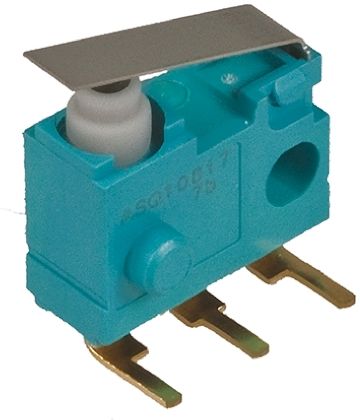

SPDT-NO/NC Leaf Lever Microswitch, 100 mA @ 30 V dc [ASQ10717]; 173-8305
by Panasonic
0₫
Mã kho: 1738305
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Leaf Lever |
| Terminal Type | Right Angle PCB |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP67 |
| Operating Force | 1.7 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +85°C |
