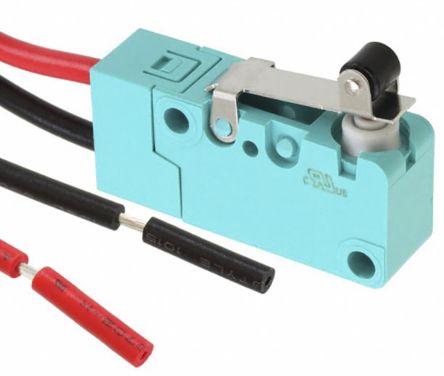

SPST-NC Short Roller Lever Microswitch, 5 A @ 250 V ac [ABV1625503R]; 173-8344
by Panasonic
0₫
Mã kho: 1738344
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Short Roller Lever |
| Terminal Type | Pre-wired |
| Contact Current Rating | 5 A @ 250 V ac |
| Contact Configuration | SPST-NC |
| IP Rating | IP67 |
| Operating Force | 2.16 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Nickel Alloy |
| Case Material | PPHS |
| Mechanical Life | 5 x 10^6Operations |
| Release Force | 0.39N |
| Operating Temperature Range | -40 → +85°C |
