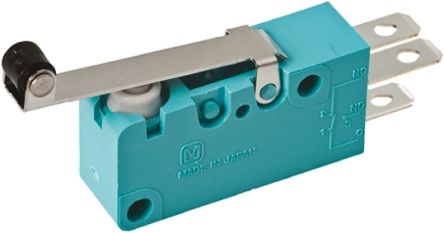

SPDT Roller Lever Microswitch, 3 A @ 250 V ac [ABV121651]; 699-0268
by Panasonic
0₫
Mã kho: 6990268
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Lever |
Terminal Type | Tab |
Contact Current Rating | 3 A @ 250 V ac |
Contact Configuration | SPDT |
IP Rating | IP50 |
Operating Force | 1.18 N |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Contact Material | Gold Clad Silver Nickel Alloy |
Case Material | PPHS |
Mechanical Life | 5 x 10^6Operations |
Release Force | 0.13N |
Operating Temperature Range | -40 → +85°C |
