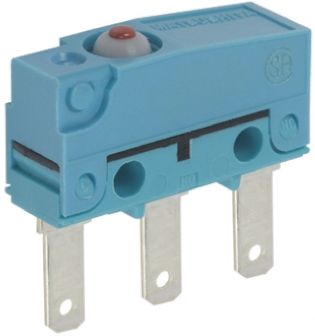

SPDT-NO/NC Pin Plunger Microswitch, 2 A @ 30 V dc [ABS1110503]; 173-8478
by Panasonic
0₫
Mã kho: 1738478
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Pin Plunger |
| Terminal Type | Tab |
| Contact Current Rating | 2 A @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP50 |
| Operating Force | 1.47 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Nickel Alloy |
| Mechanical Life | 5000000Operations |
| Release Force | 0.2N |
| Operating Temperature Range | -40 → +85°C |
