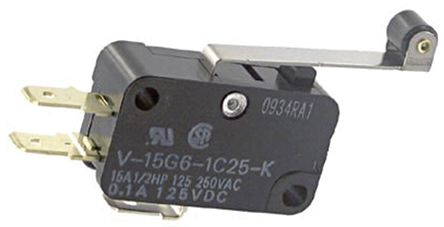

SPDT Hinge Roller Lever Microswitch, 15 A @ 250 V ac [V15G61C25KBYOMI]; 807-4419
by Omron
0₫
Mã kho: 8074419
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Hinge Roller Lever |
Terminal Type | Quick Connect |
Contact Current Rating | 15 A @ 250 V ac |
Contact Configuration | SPDT |
IP Rating | IP40 |
Operating Force | 200 gf |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +80°C |
Contact Material | Silver Alloy |
Case Material | Thermosetting |
Mechanical Life | 100000Operations |
Release Force | 14gf |
Operating Temperature Range | -25 → +80°C |
