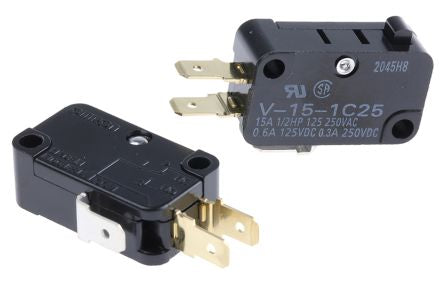

SPDT-NO/NC Pin Plunger Microswitch, 15 A @ 250 V ac [V151C25]; 686-7613
by Omron
0₫
Mã kho: 6867613
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Pin Plunger |
Terminal Type | Tab |
Contact Current Rating | 15 A @ 250 V ac |
Contact Configuration | SPDT-NO/NC |
IP Rating | IP40 |
Operating Force | 1.96 N |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +80°C |
Contact Material | Silver Alloy |
Mechanical Life | 50000000Operations |
Release Force | 0.49N |
Operating Temperature Range | -25 → +80°C |
