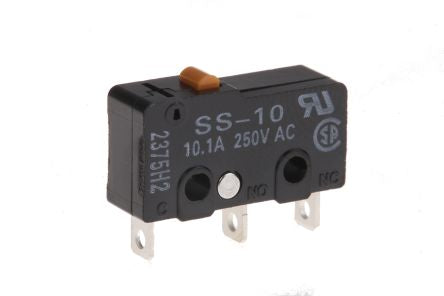

![Omron SS-10 6820831](http://nguyenxuong.com/cdn/shop/products/F6820831-01_444x296.jpg?v=1593757329)
SPDT-NO/NC Pin Plunger Microswitch, 10.1 A @ 250 V ac [SS-10]; 682-0831
by Omron
0₫
Mã kho: 6820831
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Pin Plunger |
Terminal Type | Solder |
Contact Current Rating | 10.1 A @ 250 V ac |
Contact Configuration | SPDT-NO/NC |
IP Rating | IP40 |
Operating Force | 1.47 N |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Contact Material | Silver Alloy |
Mechanical Life | 10000000Operations |
Release Force | 0.25N |
Operating Temperature Range | -25 → +85°C |
