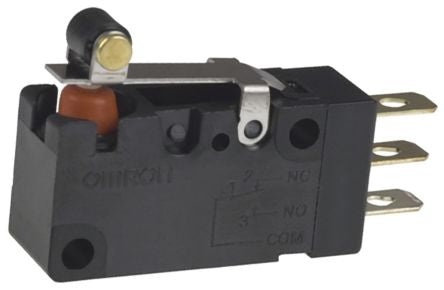

SPDT-NO/NC Short Roller Lever Microswitch, 100 mA @ 30 V dc [D2VW-01L2A-1]; 682-2285
by Omron
0₫
Mã kho: 6822285
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Short Roller Lever |
| Terminal Type | Solder |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP67 |
| Operating Force | 2.25 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Alloy |
| Mechanical Life | 10000000Operations |
| Release Force | 0.2N |
| Operating Temperature Range | -40 → +85°C |
