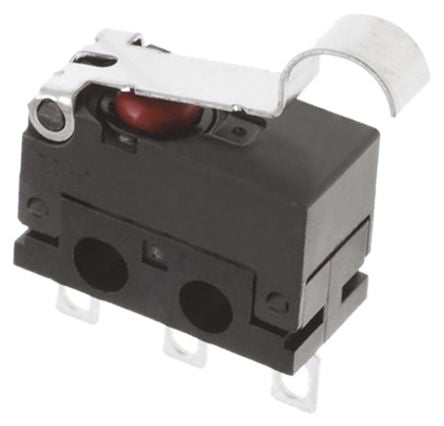

SPDT Simulated Roller Lever Microswitch, 100 mA @ 30 V dc [D2FD-01L30-1H]; 765-0330
by Omron
0₫
Mã kho: 7650330
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Simulated Roller Lever |
| Terminal Type | Solder Lug |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT |
| IP Rating | IP6X |
| Operating Force | 0.65 N |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Gold Alloy |
| Case Material | Rubber |
| Mechanical Life | 300000Operations |
| Release Force | 0.05N |
| Operating Temperature Range | -20 → +70°C |
