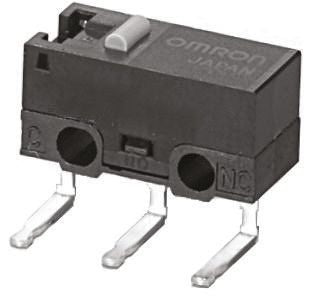

SPDT-NO/NC Pin Plunger Microswitch, 3 A @ 125 V ac [D2F-A1]; 682-1516
by Omron
0₫
Mã kho: 6821516
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Pin Plunger |
| Terminal Type | Left Angle PCB |
| Contact Current Rating | 3 A @ 125 V ac |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP40 |
| Operating Force | 1.47 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +65°C |
| Contact Material | Silver Alloy |
| Mechanical Life | 1000000Operations |
| Release Force | 0.2N |
| Operating Temperature Range | -25 → +65°C |
