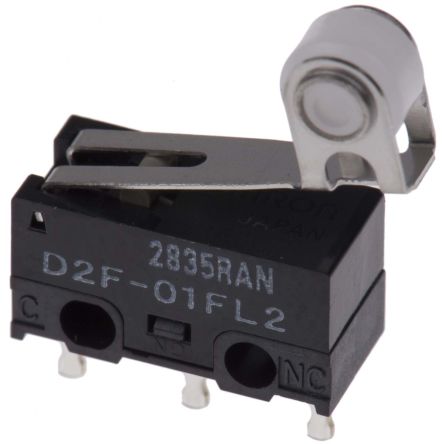

SPDT-NO/NC Roller Lever Microswitch, 100 mA @ 30 V dc [D2F-01FL2]; 686-7698
by Omron
0₫
Mã kho: 6867698
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Terminal Type | PCB |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP40 |
| Operating Force | 0.39 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +65°C |
| Contact Material | Gold Alloy |
| Mechanical Life | 1000000Operations |
| Release Force | 0.02N |
| Operating Temperature Range | -25 → +65°C |
