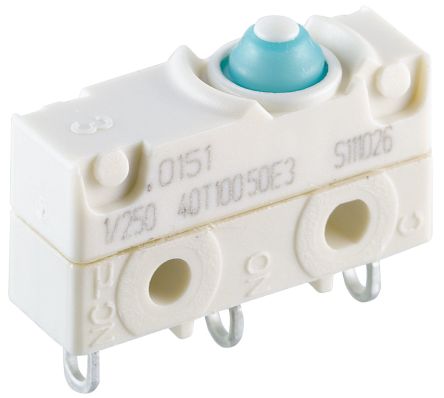

SPDT Standard Microswitch, 1 A [1045.0151]; 907-4625
by Marquardt
0₫
Mã kho: 9074625
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Standard |
| Terminal Type | Solder |
| Contact Current Rating | 0.0416666666666667 |
| Contact Configuration | SPDT |
| IP Rating | IP67 |
| Operating Force | ≤1.9 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Contact Material | Gold |
| Case Material | PA Laminated Glass Fiber-Reinforced |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -40 → +100°C |
| Standards Met | CULus, ENEC |
| Voltage Rating | 250V ac |
