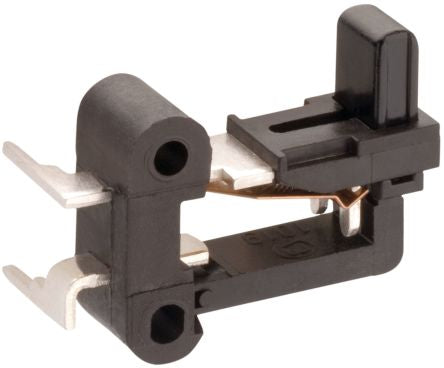

SPNO Push Button Microswitch, 6 A [1019.0201]; 907-4577
by Marquardt
0₫
Mã kho: 9074577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Push Button |
| Terminal Type | Left Angle PCB |
| Contact Current Rating | 0.25 |
| Contact Configuration | SPNO |
| Operating Force | 1.5 → 3 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Case Material | PA Glass Fiber-Reinforced |
| Mechanical Life | 10000Operations |
| Voltage Rating | 250V ac |
| Standards Met | CSA, ENEC, UL |
| Operating Temperature Range | -40 → +85°C |
