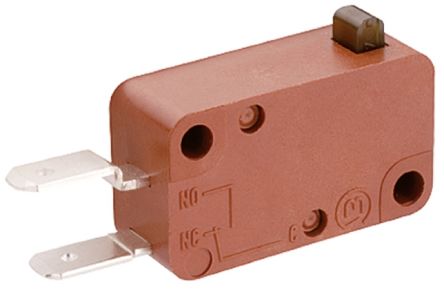

Single Pole Single Throw (SPST) Plunger Microswitch, 16 A @ 250 V ac [1005.1207]; 741-0987
by Marquardt
0₫
Mã kho: 7410987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Terminal Type | Tab |
| Contact Current Rating | 16 A @ 250 V ac |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Operating Force | 2.4 → 3.8 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Switch Housing | V0 Housing |
| Contact Material | Silver |
| Case Material | Thermosetting Plastic |
| Mechanical Life | 5000000Cycles |
| Operating Temperature Range | -40 → +100°C |
