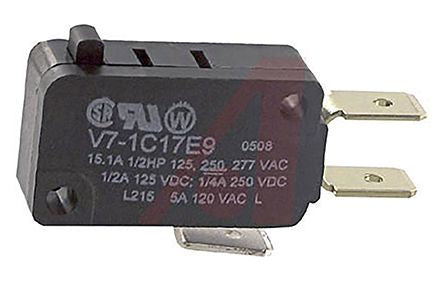

SPDT Pin Plunger Microswitch, 15 A [V7-1C17E9]; 842-1733
by Honeywell
0₫
Mã kho: 8421733
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Pin Plunger |
Terminal Type | Quick Connect |
Contact Current Rating | 15 A |
Contact Configuration | SPDT |
Operating Force | 1.47 N |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Switch Housing | V7 Housing |
Contact Material | Silver/Gold Plated/Gold Alloy |
Case Material | Thermoplastic |
Mechanical Life | 10000000Cycles |
Release Force | 0.25N |
Operating Temperature Range | -40 → +85°C |
