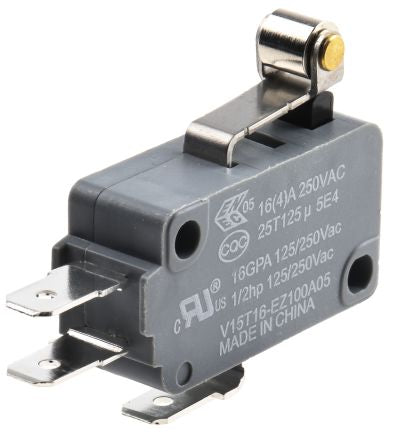

SPDT-NO/NC Short Roller Lever Microswitch, 16 A @ 250 V ac [V15T16-EZ100A05]; 515-688
by Honeywell
0₫
Mã kho: 515688
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Short Roller Lever |
Terminal Type | Tab |
Contact Current Rating | 16 A @ 250 V ac |
Contact Configuration | SPDT-NO/NC |
Operating Force | 0.98 N |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +125°C |
Contact Material | Silver Cadmium Oxide |
Case Material | Polybutylene Terephthalate PET Thermoplastic |
Mechanical Life | 5000000Operations |
Release Force | 0.25N |
Operating Temperature Range | -25 → +125°C |
