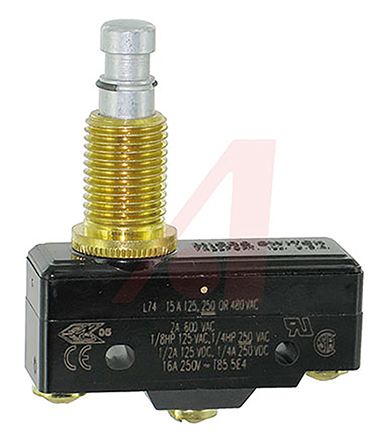

SPDT Straight Lever Microswitch, 15 A [BZ-2RN702]; 842-6611
by Honeywell
0₫
Mã kho: 8426611
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Straight Lever |
| Terminal Type | Solder |
| Contact Current Rating | 15 A |
| Contact Configuration | SPDT |
| Operating Force | 2.5 → 3.61 N |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Case Material | Phenolic |
| Mechanical Life | 20000000Operations |
| Release Force | 1.11N |
| Operating Temperature Range | -55 → +85°C |
