![C & K LCA01150P00PC 1534131](http://nguyenxuong.com/cdn/shop/products/Y1534131-01_240x350.jpg?v=1594412903)

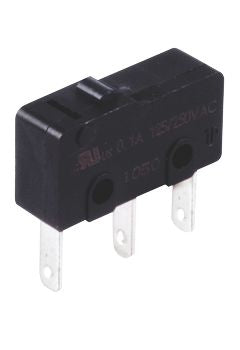

SPDT Pin Plunger Snap Action Micro Switch, 100 mA @ 125 / 250 V ac [LCA01150P00PC]; 153-4131
by C & K
0₫
Mã kho: 1534131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Pin Plunger |
Terminal Type | Pc Pin |
Contact Current Rating | 100 mA @ 125 / 250 V ac |
Contact Configuration | SPDT |
Operating Force | 150 g |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Contact Material | Copper Alloy |
Case Material | Thermoplastic Polyester PET |
Standards Met | CULus Recognized, ENEC, UL |
Voltage Rating | 250V ac |
Operating Temperature Range | -40 → +125°C |
