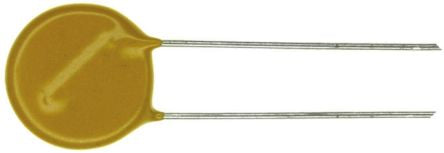

Wurth Elektronik WE-VD Series Metal Oxide Varistor 3.14nF 5A, Clamping 93V, Varistor 47V [820513001]; 163-3863
0₫
Mã kho: 1633863
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 47V |
| Maximum AC Voltage Rating | 30V |
| Maximum DC Voltage Rating | 38V |
| Clamping Voltage | 93V |
| Clamping Current | 5A |
| Energy | 6J |
| Series | WE-VD |
| Diameter | 12.5mm |
| Maximum Surge Current | 500A |
| Capacitance | 3.14nF |
| Thickness | 5mm |
| Dimensions | 12.5 (Dia.) x 5mm |
| Lead Pitch | 7.5mm |
