Nippon Chemi-Con Metal Oxide Varistor 100pF 5A, Clamping 415V, Varistor 270V [TNR5V271K]; 316-5908
0₫
Mã kho: 3165908
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 270V |
| Maximum AC Voltage Rating | 175V |
| Maximum DC Voltage Rating | 225V |
| Clamping Voltage | 415V |
| Clamping Current | 5A |
| Energy | 8J |
| Diameter | 11.5mm |
| Maximum Surge Current | 800A |
| Capacitance | 100pF |
| Thickness | 5.1mm |

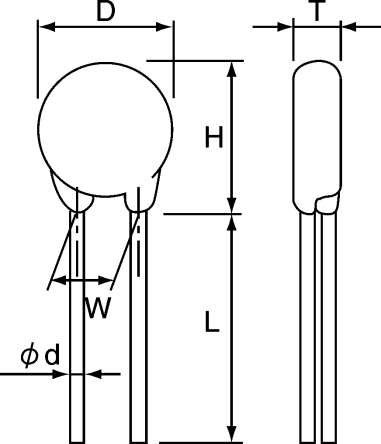

| Dimensions | 11.5 (Dia.) x 5.1mm |
| Lead Pitch | 7.5mm |
