Nippon Chemi-Con Metal Oxide Varistor 140pF 25A, Clamping 1355V, Varistor 820V [TNR10V821K]; 316-5970
0₫
Mã kho: 3165970
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 820V |
| Maximum AC Voltage Rating | 510V |
| Maximum DC Voltage Rating | 760V |
| Clamping Voltage | 1355V |
| Clamping Current | 25A |
| Energy | 80J |
| Diameter | 11.5mm |
| Maximum Surge Current | 3500A |
| Capacitance | 140pF |
| Thickness | 8.1mm |

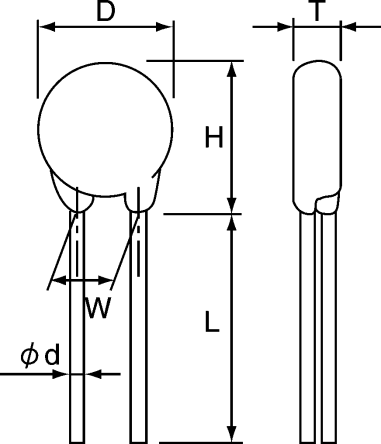

| Dimensions | 11.5 (Dia.) x 8.1mm |
| Lead Pitch | 7.5mm |
