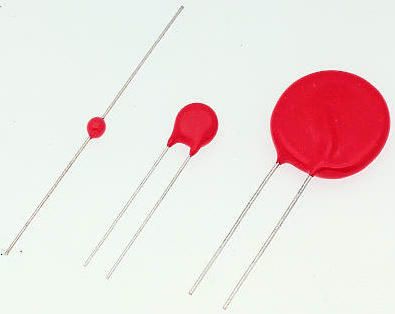

Littelfuse LA Series Metal Oxide Varistor 90pF 10A, Clamping 650V, Varistor 429V [V250LA4P]; 800-7056
by Littelfuse
0₫
Mã kho: 8007056
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 429V |
| Maximum AC Voltage Rating | 250V |
| Maximum DC Voltage Rating | 330V |
| Clamping Voltage | 650V |
| Clamping Current | 10A |
| Energy | 21J |
| Series | LA |
| Diameter | 9mm |
| Maximum Surge Current | 1200A |
| Capacitance | 90pF |
| Thickness | 5.6mm |
| Dimensions | 9 (Dia.) x 5.6mm |
| Lead Pitch | 6mm |
