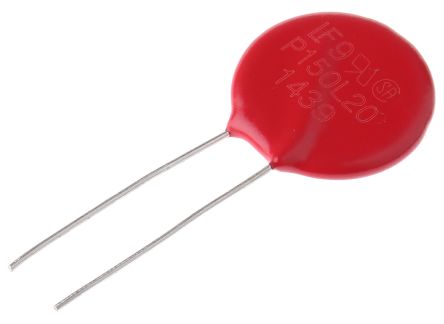

Littelfuse LA Series Metal Oxide Varistor 1.6nF 100A, Clamping 395V, Varistor 268V [V150LA20AP]; 170-9909
by Littelfuse
0₫
Mã kho: 1709909
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 268V |
| Maximum AC Voltage Rating | 150V |
| Maximum DC Voltage Rating | 200V |
| Clamping Voltage | 395V |
| Clamping Current | 100A |
| Energy | 80J |
| Series | LA |
| Diameter | 23mm |
| Maximum Surge Current | 6500A |
| Capacitance | 1.6nF |
| Thickness | 5.6mm |
| Dimensions | 23 (Dia.) x 5.6mm |
| Lead Pitch | 8.5mm |
