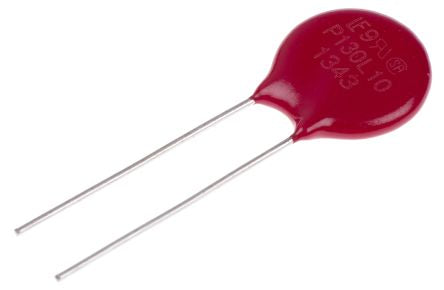

Littelfuse LA Series Metal Oxide Varistor 1nF 50A, Clamping 340V, Varistor 228V [V130LA10AP]; 170-9903
by Littelfuse
0₫
Mã kho: 1709903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 228V |
| Maximum AC Voltage Rating | 130V |
| Maximum DC Voltage Rating | 175V |
| Clamping Voltage | 340V |
| Clamping Current | 50A |
| Energy | 38J |
| Series | LA |
| Diameter | 17mm |
| Maximum Surge Current | 4500A |
| Capacitance | 1nF |
| Thickness | 5.6mm |
| Dimensions | 17 (Dia.) x 5.6mm |
| Lead Pitch | 8.5mm |
