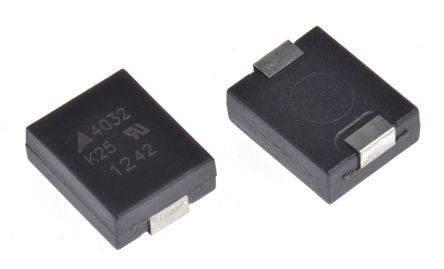

EPCOS CU Series Metal Oxide Varistor 1.4nF 2.5A, Clamping 77V, Varistor 39V 4032 (10280M) Case [B72660M0250K072]; 167-0540
by EPCOS
0₫
Mã kho: 1670540
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 39V |
| Maximum AC Voltage Rating | 25Vrms |
| Maximum DC Voltage Rating | 31V |
| Clamping Voltage | 77V |
| Clamping Current | 2.5A |
| Series | CU |
| Maximum Surge Current | 250A |
| Capacitance | 1.4nF |
| Length | 10.2mm |
| Depth | 8mm |
| Thickness | 3.2mm |
| Dimensions | 10.2 x 8 x 3.2mm |
| Package/Case | 4032 (10280M) |
