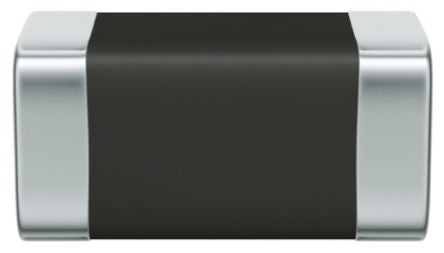

Metal-Oxide Varistor 14Vrms 3mW 0603 [B72500E0140K060]; 162-0229
by EPCOS
0₫
Mã kho: 1620229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 19.8 → 24.2V |
| Maximum AC Voltage Rating | 14V |
| Maximum DC Voltage Rating | 18V |
| Clamping Voltage | 40V |
| Clamping Current | 1A |
| Energy | 0.2J |
| Maximum Surge Current | 30A |
| Capacitance | 100pF |
| Length | 1.6mm |
| Depth | 0.8mm |
| Dimensions | 1.6 x 0.8 x 0.9mm |
| Package/Case | 0603 (1608M) |
