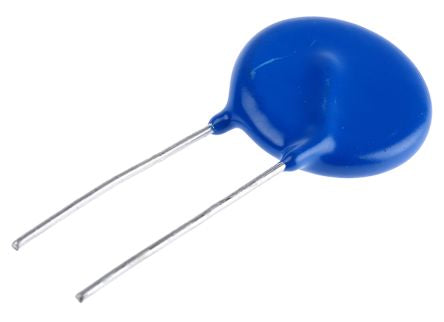

EPCOS SuperioR-MP Series Metal Oxide Varistor 585pF 100A, Clamping 710V, Varistor 430V [B72220P3271K101]; 134-5702
by EPCOS
0₫
Mã kho: 1345702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 430V |
| Maximum AC Voltage Rating | 275V |
| Maximum DC Voltage Rating | 350V |
| Clamping Voltage | 710V |
| Clamping Current | 100A |
| Energy | 260J |
| Series | SuperioR-MP |
| Diameter | 22.5mm |
| Maximum Surge Current | 12000A |
| Capacitance | 585pF |
| Thickness | 6.5mm |
| Dimensions | 22.5 (Dia.) x 6.5mm |
| Lead Pitch | 10mm |
