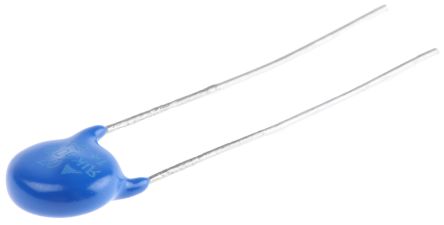

EPCOS Standard Series Metal Oxide Varistor 90pF 10A, Clamping 775V, Varistor 470V [B72207S0301K101]; 204-2078
by EPCOS
0₫
Mã kho: 2042078
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 470V |
| Maximum AC Voltage Rating | 300V |
| Maximum DC Voltage Rating | 385V |
| Clamping Voltage | 775V |
| Clamping Current | 10A |
| Energy | 23J |
| Series | Standard |
| Diameter | 9mm |
| Maximum Surge Current | 1200A |
| Capacitance | 90pF |
| Thickness | 4.5mm |
| Dimensions | 9 (Dia.) x 4.5mm |
| Lead Pitch | 5mm |
