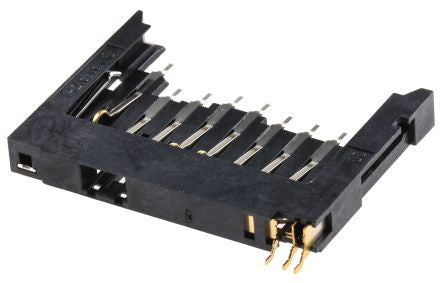

Yamaichi 9 Way Right Angle SD Card Memory Card Connector With Solder Termination [FPS009-3202-BL]; 237-697
by Yamaichi
0₫
Mã kho: 237697
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | SD Card |
| Gender | Female |
| Number of Contacts | 9 |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 27.4mm |
| Width | 3.1mm |
| Depth | 20.3mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Dimensions | 27.4 x 3.1 x 20.3mm |
