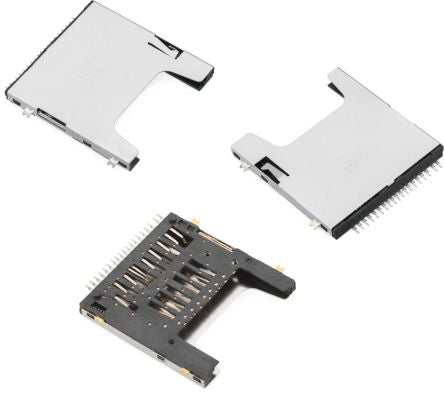

Wurth Elektronik 19 Way SD Card Memory Card Connector With Solder Termination [693161011911]; 162-1838
0₫
Mã kho: 1621838
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | SD Card |
| Gender | Female |
| Number of Contacts | 19 |
| Number of Rows | 2 |
| Pitch | 1.3mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Stainless Steel |
| Length | 30.35mm |
| Width | 29.4mm |
| Depth | 3.8mm |
| Minimum Operating Temperature | -20°C |
| Dimensions | 30.35 x 29.4 x 3.8mm |
| Maximum Operating Temperature | +60°C |
